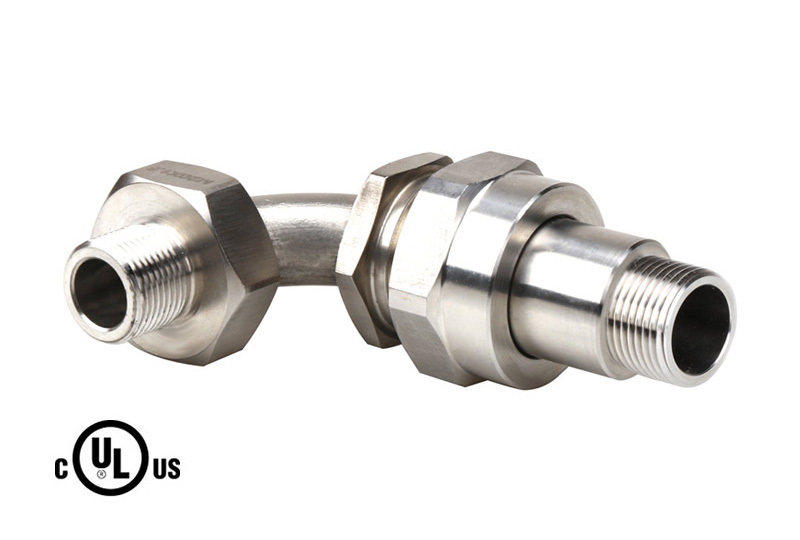

參數：
材質：不銹鋼 304 (1/2"~6"), 黃銅 (1/2"~2"), 鐵 (2-1/2"~6")
尺寸：1/2"~6"
耐壓強度：Max. 6000 psi (1/2", 3/4"), Max. 1200 psi (1"~2")
螺紋型式：NPT、M
RoHS：符合
認證：cULus (E490826)

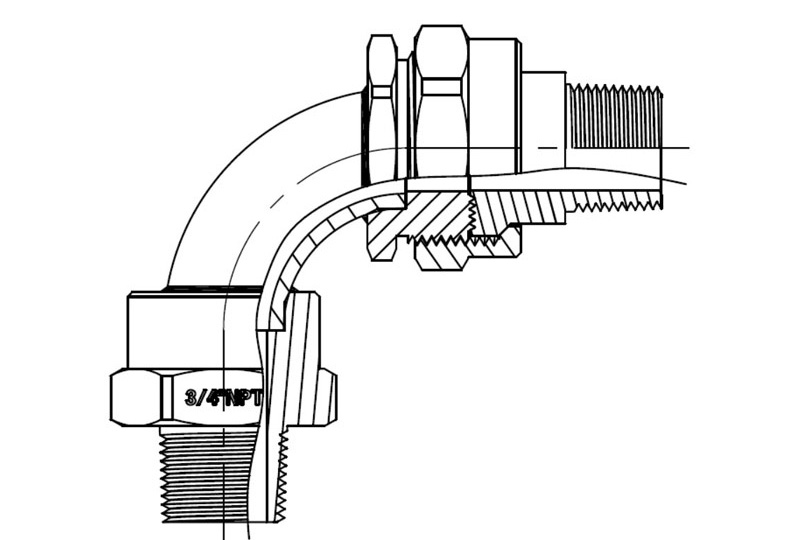

規格表：
M螺紋
| 公稱尺寸 | M螺紋 | 產品型號 | 每箱數量 (Pcs) | 每箱重量 (Kg) |
|---|---|---|---|---|
| 1/2 | M20X1.5 | KF-XG1M11 | 6 | 3 |
| 3/4 | M25X1.5 | KF-XG2M11 | 6 | 4 |
| 1 | M32X1.5 | KF-XG3M11 | 6 | 6.1 |
| 1-1/4 | M40X1.5 | KF-XG4M11 | 2 | 2.7 |
| 1-1/2 | M50X1.5 | KF-XG5M11 | 2 | 3.3 |
| 2 | M63X1.5 | KF-XG6M11 | 2 | 4.9 |
| 2-1/2 | M75X1.5 | KF-XG7M11 | 1 | - |
| 3 | M90X1.5 | KF-XG8M11 | 1 | - |
| 4 | M110X1.5 | KF-XG9M11 | 1 | - |
| 5 | M140X1.5 | KF-XG10M11 | 1 | - |
| 6 | M164X1.5 | KF-XG11M11 | 1 | - |
NPT螺紋
| 公稱尺寸 | NPT螺紋 | 產品型號 | 每箱數量 (Pcs) | 每箱重量 (Kg) |
|---|---|---|---|---|
| 1/2 | 1/2" | KF-XG1M21 | 6 | 3 |
| 3/4 | 3/4" | KF-XG2M21 | 6 | 4 |
| 1 | 1" | KF-XG3M21 | 6 | 6.1 |
| 1-1/4 | 1-1/4" | KF-XG4M21 | 2 | 2.7 |
| 1-1/2 | 1-1/2" | KF-XG5M21 | 2 | 3.3 |
| 2 | 2" | KF-XG6M21 | 2 | 4.9 |
| 2-1/2 | 2-1/2" | KF-XG7M21 | 1 | - |
| 3 | 3" | KF-XG8M21 | 1 | - |
| 4 | 4" | KF-XG9M21 | 1 | - |
| 5 | 5" | KF-XG10M21 | 1 | - |
| 6 | 6" | KF-XG11M21 | 1 | - |
