參數(shù)：

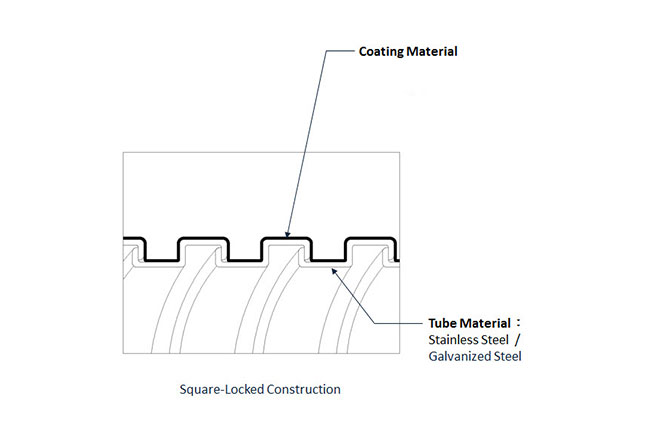

結構:單扣
材質: 不銹鋼
披覆顏色: 黑色(其他顏色定制)
防火等級: 自熄
RoHS: 符合
規(guī)格表：
| 型號 | 內(nèi)徑 (mm) | 外徑 (mm) | 披覆后外徑 (mm) | 包裝(m/roll) | |
|---|---|---|---|---|---|
| P015034S1P2 | 1.5±0.1 | 2.6±0.1 | 3.4±0.20 | 100 | |
| P018037S1P2 | 1.8±0.2 | 2.9±0.2 | 3.7±0.20 | 100 | |
| P022044S1P2 | 2.2±0.2 | 3.4±0.2 | 4.4±0.20 | 100 | |
| P026048S1P2 | 2.6±0.2 | 3.8±0.2 | 4.8±0.20 | 100 | |
| P030056S1P2 | 3.0±0.2 | 4.6±0.2 | 5.6±0.20 | 100 | |
| P032063S1P2 | 3.2±0.2 | 4.8±0.2 | 6.3±0.20 | 100 | |
| P035060S1P2 | 3.5±0.2 | 5.1±0.2 | 6.0±0.25 | 100 | |
| P040070S1P2 | 4.0±0.2 | 6.0±0.2 | 7.0±0.25 | 100 | |
| P045080S1P2 | 4.5±0.2 | 6.5±0.2 | 8.0±0.25 | 100 | |
| P050078S1P2 | 5.0±0.2 | 7.0±0.2 | 7.8±0.25 | 100 | |
| P055085S1P2 | 5.5±0.2 | 7.5±0.2 | 8.5±0.25 | 100 | |
| P060090S1P2 | 6.0±0.2 | 8.0±0.2 | 9.0±0.25 | 100 | |
| P065095S1P2 | 6.5±0.2 | 8.5±0.2 | 9.5±0.25 | 100 | |
| P070100S1P2 | 7.0±0.2 | 9.0±0.2 | 10.0±0.25 | 100 | |
| P075105S1P2 | 7.5±0.2 | 9.5±0.2 | 10.5±0.25 | 100 | |
| P080110S1P2 | 8.0±0.2 | 10.0±0.2 | 11.0±0.25 | 100 | |
| P090120S1P2 | 9.0±0.2 | 11.0±0.2 | 12.0±0.25 | 100 | |
| P100130S1P2 | 10.0±0.2 | 12.0±0.2 | 130±0.25 | 100 | |
| P115152S1P2 | 11.5±0.2 | 14.0±0.2 | 15.2±0.25 | 100 | |
| P125166S1P2 | 12.5±0.3 | 15.7±0.3 | 16.6±0.35 | 100 | |
| P144188S1P2 | 14.4±0.3 | 17.8±0.3 | 18.8±0.35 | 100 | |
| P161205S1P2 | 16.1±0.3 | 19.5±0.3 | 20.5±0.35 | 100 | |
